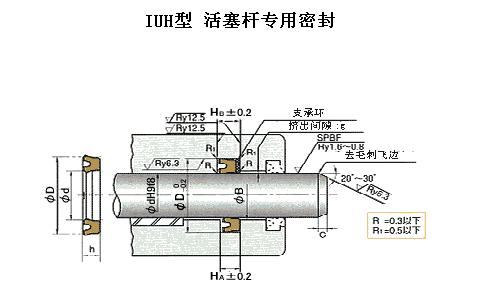

IUH活塞杆专用密封件 |
||||||
|
密封件公称尺寸 |
沟槽部分尺寸 |
NOK代码 |
||||
|
d |
D |
h |
HA |
HB |
C |
|
|
14 |
22 |
5 |
5.7 |
7.7 |
2.5 |
CU2962-N1 |
|
16 |
24 |
CU2548-N0 |
||||
|
18 |
26 |
CU0180-N0 |
||||
|
20 |
28 |
CU0212-N0 |
||||
|
22 |
30 |
CU3017-N0 |
||||
|
22.4 |
30 |
CU3488-N0 |
||||
|
25 |
33 |
CU0276-E1 |
||||
|
28 |
35.5 |
CU0320-N0 |
||||
|
28 |
36 |
8.7 |
CU2536-N0 |
|||
|
30 |
40 |
6 |
7 |
10 |
3 |
CU0357-E0 |
|
32 |
42 |
CU2819-N0 |
||||
|
35 |
45 |
CU0424-E0 |
||||
|
35.5 |
45 |
CU0451-E0 |
||||
|
36 |
46 |
CU3040-N0 |
||||
|
40 |
50 |
CU0497-E0 |
||||
|
45 |
55 |
CU0567-E0 |
||||
|
45 |
56 |
7 |
8 |
11 |
CU0572-N1 |
|
|
50 |
60 |
6 |
7 |
10 |
CU0619-E0 |
|
|
55 |
65 |
CU0694-E0 |
||||
|
56 |
66 |
CU0722-E0 |
||||
|
60 |
70 |
CU0746-E0 |
||||
|
63 |
73 |
CU0786-E0 |
||||
|
65 |
75 |
CU0809-E0 |
||||
|
67 |
77 |
CU0828-N0 |
||||
|
70 |
85 |
9 |
10 |
13 |
4 |
CU0857-N2 |
|
71 |
80 |
6 |
7 |
10 |
CU0879-E0 |
|
|
75 |
85 |
CU0901-E0 |
||||
|
80 |
90 |
CU0939-E0 |
||||
|
85 |
100 |
9 |
10 |
13 |
CU0984-N1 |
|
|
90 |
105 |
CU1024-N3 |
||||
|
95 |
110 |
CU1051-N2 |
||||
|
100 |
115 |
CU1082-N3 |
||||
|
105 |
120 |
CU1125-N1 |
||||
|
110 |
125 |
CU1157-N3 |
||||
|
112 |
125 |
8.5 |
9.5 |
12.5 |
CU1178-N0 |
|
|
115 |
130 |
9 |
10 |
13 |
CU1195-N0 |
|
|
120 |
135 |
CU1220-N3 |
||||
|
125 |
140 |
CU1252-N3 |
||||
|
130 |
145 |
CU1280-N0 |
||||
|
135 |
150 |
CU2264-N2 |
||||
|
140 |
155 |
CU1323-N2 |
||||
|
145 |
160 |
CU1343-N0 |
||||
|
150 |
165 |
CU1359-N2 |
||||
|
160 |
175 |
14 |
CU1406-N1 |
|||
|
170 |
190 |
12 |
13 |
17 |
5.5 |
CU3494-N1 |
|
180 |
200 |
CU1483-N2 |
||||
