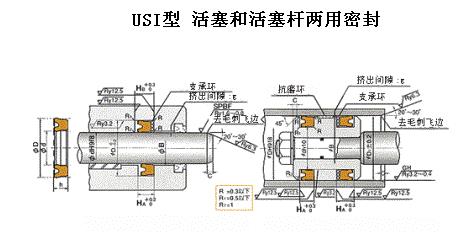

USI活塞活塞杆双用密封件 |
|||||||
|
密封件公称尺寸 |
组装部分尺寸 |
NOK代码 |
|||||
|
D |
d |
h |
HA |
HB |
φD1 |
C |
|
|
10 |
18 |
5 |
5.7 |
7.7 |
17 |
2 |
FU0064-S0 |
|
12 |
20 |
5 |
19 |
FU2464-S0 |
|||
|
12.5 |
20 |
5 |
19 |
FU2465-S0 |
|||
|
14 |
22 |
5 |
21 |
FU0116-S0 |
|||
|
16 |
24 |
5 |
23 |
FU0150-S0 |
|||
|
17 |
25 |
5 |
24 |
FU2466-S0 |
|||
|
18 |
26 |
5 |
25 |
FU0180-S0 |
|||
|
20 |
28 |
5 |
27 |
FU0212-S0 |
|||
|
20 |
30 |
6 |
7 |
9 |
29 |
FU0214-S0 |
|
|
22 |
30 |
5 |
5.7 |
7.7 |
29 |
FU2467-S0 |
|
|
22.4 |
30 |
5 |
29 |
FU0260-S0 |
|||
|
23.5 |
31.5 |
5 |
30.5 |
FU0267-S0 |
|||
|
24 |
32 |
5 |
31 |
FU2468-S0 |
|||
|
25 |
33 |
5 |
32 |
2.5 |
FU0276-S0 |
||
|
25 |
35 |
6 |
7 |
9 |
34 |
FU0279-S0 |
|
|
26 |
34 |
5 |
5.7 |
8.7 |
33 |
FU2469-S0 |
|
|
27 |
35 |
6 |
34 |
FU2470-S0 |
|||
|
28 |
35.5 |
5 |
34.5 |
FU0320-S0 |
|||
|
28 |
36 |
5 |
35 |
FU0321-S0 |
|||
|
30 |
38 |
5 |
37 |
FU0355-S0 |
|||
|
30 |
40 |
6 |
7 |
10 |
39 |
FU0357-S0 |
|
|
31.5 |
41.5 |
6 |
40.5 |
FU0382-S0 |
|||
|
32 |
42 |
6 |
41 |
FU2055-S0 |
|||
|
33 |
43 |
6 |
42 |
FU2471-S0 |
|||
|
34 |
44 |
6 |
43 |
FU2263-S0 |
|||
|
35 |
45 |
6 |
44 |
FU0424-S0 |
|||
|
35.5 |
45 |
6 |
44 |
FU0451-S0 |
|||
|
35.5 |
45.5 |
6 |
44.5 |
FU0452-S0 |
|||
|
36 |
46 |
6 |
45 |
FU2472-S0 |
|||
|
38 |
48 |
6 |
47 |
FU2240-S0 |
|||
|
40 |
50 |
6 |
49 |
FU0497-S0 |
|||
|
45 |
55 |
6 |
54 |
FU0567-S0 |
|||
|
45 |
56 |
7 |
8 |
11 |
55 |
FU0572-S0 |
|
|
46 |
56 |
6 |
7 |
10 |
55 |
FU2662-S0 |
|
|
50 |
60 |
6 |
59 |
FU0619-S0 |
|||
|
53 |
63 |
6 |
62 |
FU0679-S0 |
|||
|
55 |
65 |
6 |
64 |
FU0694-S0 |
|||
|
56 |
66 |
6 |
65 |
FU0722-S0 |
|||
|
58 |
68 |
6 |
67 |
FU2473-S0 |
|||
|
60 |
70 |
6 |
69 |
FU0746-S0 |
|||
|
60 |
71 |
7 |
8 |
11 |
70 |
FU0750-S0 |
|
|
61 |
71 |
6 |
7 |
10 |
70 |
2.5 |
FU2474-S0 |
|
63 |
73 |
6 |
72 |
FU0786-S0 |
|||
|
65 |
75 |
6 |
74 |
FU0809-S0 |
|||
|
67 |
77 |
6 |
76 |
FU0828-S0 |
|||
|
70 |
80 |
6 |
79 |
FU0849-S0 |
|||
|
71 |
80 |
6 |
79 |
FU0879-S0 |
|||
|
75 |
85 |
6 |
84 |
FU0901-S0 |
|||
|
80 |
90 |
6 |
89 |
FU0939-S0 |
|||
|
80 |
95 |
9 |
10 |
13 |
94 |
4 |
FU0942-S0 |
|
85 |
95 |
6 |
7 |
10 |
94 |
FU2475-S0 |
|
|
85 |
100 |
9 |
10 |
13 |
99 |
FU0984-S0 |
|
|
86 |
100 |
8.5 |
9.5 |
12.5 |
99 |
FU2476-S0 |
|
|
89 |
104 |
9 |
10 |
13 |
103 |
FU2372-S0 |
|
|
90 |
100 |
6 |
7 |
10 |
99 |
FU1021-S0 |
|
|
90 |
105 |
9 |
10 |
13 |
104 |
FU1024-S0 |
|
|
95 |
110 |
9 |
109 |
FU1051-S0 |
|||
|
96 |
111 |
9 |
110 |
FU2477-S0 |
|||
|
98 |
112 |
8.5 |
9.5 |
12.5 |
111 |
FU1067-S0 |
|
|
100 |
115 |
9 |
10 |
13 |
113 |
FU1082-S0 |
|
|
105 |
120 |
9 |
118 |
FU1125-S0 |
|||
|
106 |
120 |
8.5 |
9.5 |
12.5 |
118 |
FU1135-S0 |
|
|
110 |
125 |
9 |
10 |
13 |
123 |
FU1157-S0 |
|
|
112 |
125 |
9 |
123 |
FU1179-S0 |
|||
|
115 |
130 |
9 |
128 |
FU1195-S0 |
|||
|
118 |
132 |
8.5 |
9.5 |
12.5 |
130 |
FU1204-S0 |
|
|
125 |
140 |
9 |
10 |
13 |
138 |
FU1252-S0 |
|
|
132 |
145 |
8.5 |
9.5 |
12.5 |
143 |
FU1291-S0 |
|
|
136 |
150 |
8.5 |
148 |
FU1306-S0 |
|||
|
145 |
160 |
9 |
10 |
13 |
158 |
FU1343-S0 |
|
