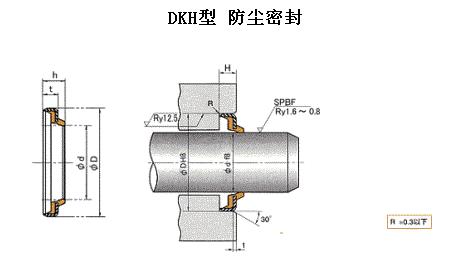

DKH往复运动防尘密封件

防尘密封件的公称尺寸及腔体尺寸

NOK代码

d

D

t

h

H

10

20

5

7

5+0.5 5+0.3

AR0258-E5

15

25

5

7

AR0586-E5

20

32

6

9

6+0.5 6+0.3

AR0995-F5

22.4

34.4

6

9

AR1203-G5

25

37

6

9

AR1301-F5

28

40

6

9

AR1536-G5

30

42

6

9

AR1664-G5

35

47

7

10

7+0.5 7+0.3

AR2041-F5

35.5

47.5

7

10

AR2149-J5

40

52

7

10

AR2342-F5

45

57

7

10

AR2633-I5

50

62

7

10

AR2831-H5

55

69

8

11

8+0.6 8+0.4

AR3033-G5

60

74

8

11

AR3187-J5

65

79

8

11

AR3381-G5

80

94

8

11

AR3720-H5

85

99

8

11

AR3828-G5

90

104

8

11

AR3913-F5

95

109

8

11

AR3976-H5

100

114

8

11

AR4046-E5

105

121

9

12

9+0.6 9+0.4

AR4142-E5

120

136

9

12

AR4326-H5

130

146

9

12

AR4438-E5

155

175

10

14

10+0.6,0.4

AR4663-F5

210

235

12

17

12+0.7 12+0.5

AR5129-E5

230

255

12

17

AR5277-E5

240

265

12

17

AR5336-E5

250

275

12

17

AR5396-E0

255

290

12

17

AR5437-E0

265

290

12

17

AR5480-E0

280

310

16

22

16+0.7 16+0.5

AR5556-E2

300

330

16

22

AR5622-B0

310

340

16

22

AR5668-B0

315

345

16

22

AR5685-B0

320

350

16

22

AR5707-B0

330

360

16

22

AR5741-B0

335

365

16

22

AR5761-B0

440

480

18

24

18+0.7,0.5

AR6021-B0

460

490

20

25

20+0.8 20+0.6

AR6073-B0

470

510

20

25

AR6094-B0

500

530

16

22

16+0.7,0.5

AR6140-B0
