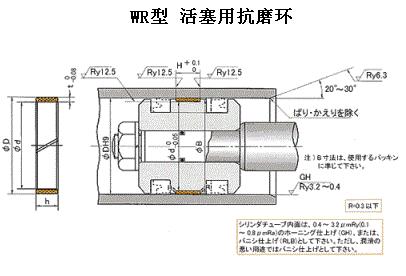

WR抗磨环 |
|||||
|
抗磨环的公称尺寸及腔体尺寸 |
NOK代码 |
||||
|
d |
D |
t |
h |
H |
|
|
14 |
18 |
8 |
2 |
8 |
GW0241-P0 |
|
15.2 |
19.2 |
8 |
2 |
GW0242-P0 |
|
|
16 |
20 |
8 |
2 |
GW0243-P0 |
|
|
18 |
22 |
8 |
2 |
GW0244-P0 |
|
|
20 |
24 |
8 |
2 |
GW0245-P0 |
|
|
21 |
25 |
8 |
2 |
GW0246-P0 |
|
|
22 |
26 |
8 |
2 |
GW0247-P0 |
|
|
24 |
28 |
8 |
2 |
GW0248-P0 |
|
|
26 |
30 |
8 |
2 |
GW0249-P0 |
|
|
27 |
31 |
8 |
2 |
GW0250-P0 |
|
|
27.5 |
31.5 |
8 |
2 |
GW0251-P0 |
|
|
29 |
33 |
10 |
2 |
10 |
GW0252-P0 |
|
31 |
35 |
10 |
2 |
GW0253-P0 |
|
|
31.4 |
35.4 |
10 |
2 |
GW0254-P0 |
|
|
31.5 |
35.5 |
10 |
2 |
GW0255-P0 |
|
|
34 |
38 |
10 |
2 |
GW0256-P0 |
|
|
36 |
40 |
10 |
2 |
GW0257-P0 |
|
|
37 |
41 |
15 |
2 |
15 |
GW0258-P0 |
|
38 |
43 |
15 |
2.5 |
GW0259-P0 |
|
|
39.5 |
44.5 |
15 |
2.5 |
GW0260-P0 |
|
|
40 |
45 |
15 |
2.5 |
GW0261-P0 |
|
|
45 |
50 |
15 |
2.5 |
GW0006-P1 |
|
|
46.5 |
51.5 |
15 |
2.5 |
GW0263-P0 |
|
|
50 |
55 |
15 |
2.5 |
GW0264-P0 |
|
|
51 |
56 |
15 |
2.5 |
GW0010-P1 |
|
|
55 |
60 |
15 |
2.5 |
GW0012-P1 |
|
|
56 |
61 |
15 |
2.5 |
GW0267-P0 |
|
|
58 |
63 |
15 |
2.5 |
GW0268-P0 |
|
|
60 |
65 |
20 |
2.5 |
20 |
GW0269-P0 |
|
61 |
66 |
20 |
2.5 |
GW0270-P0 |
|
|
64 |
69 |
20 |
2.5 |
GW0271-P0 |
|
|
65 |
70 |
20 |
2.5 |
GW0019-P1 |
|
|
66 |
71 |
20 |
2.5 |
GW0192-P1 |
|
|
70 |
75 |
20 |
2.5 |
GW0021-P1 |
|
|
71 |
76 |
20 |
2.5 |
GW0275-P0 |
|
|
75 |
80 |
20 |
2.5 |
GW0027-P1 |
|
|
79 |
85 |
25 |
3 |
25 |
GW0030-P1 |
|
84 |
90 |
25 |
3 |
GW0036-P1 |
|
|
89 |
95 |
25 |
3 |
GW0167-P1 |
|
|
94 |
100 |
25 |
3 |
GW0041-P3 |
|
|
99 |
105 |
25 |
3 |
25 |
GW0278-P0 |
|
104 |
110 |
25 |
3 |
GW0051-P1 |
|
|
106 |
112 |
30 |
3 |
30 |
GW0280-P0 |
|
109 |
115 |
30 |
3 |
GW0055-P2 |
|
|
114 |
120 |
30 |
3 |
GW0059-P1 |
|
|
119 |
125 |
30 |
3 |
GW0283-P0 |
|
|
123 |
130 |
30 |
3.5 |
GW0065-P1 |
|
|
125 |
132 |
35 |
3.5 |
35 |
GW0285-P0 |
|
133 |
140 |
35 |
3.5 |
GW0075-P1 |
|
|
143 |
150 |
35 |
3.5 |
GW0086-P1 |
|
|
150 |
157 |
40 |
3.5 |
40 |
GW0287-P0 |
|
153 |
160 |
40 |
3.5 |
GW0093-P2 |
|
|
157 |
165 |
45 |
4 |
45 |
GW0289-P0 |
|
162 |
170 |
45 |
4 |
GW0290-P0 |
|
|
172 |
180 |
45 |
4 |
GW0104-P1 |
|
|
177 |
185 |
45 |
4 |
GW0292-P0 |
|
|
182 |
190 |
45 |
4 |
GW0293-P0 |
|
|
192 |
200 |
45 |
4 |
GW0109-P1 |
|
|
197 |
205 |
50 |
4 |
50 |
GW0181-P0 |
|
202 |
210 |
50 |
4 |
GW0296-P0 |
|
|
212 |
220 |
50 |
4 |
GW0297-P0 |
|
|
216 |
224 |
50 |
4 |
GW0298-P0 |
|
|
217 |
225 |
50 |
4 |
GW0115-P1 |
|
|
222 |
230 |
55 |
4 |
55 |
GW0300-P0 |
|
232 |
240 |
55 |
4 |
GW0301-P0 |
|
|
242 |
250 |
55 |
4 |
GW0122-P1 |
|
|
252 |
260 |
60 |
4 |
60 |
GW0303-P0 |
|
262 |
270 |
60 |
4 |
GW0304-P0 |
|
|
267 |
275 |
60 |
4 |
GW0305-P0 |
|
|
282 |
290 |
70 |
4 |
70 |
GW0307-P0 |
|
289 |
297 |
70 |
4 |
GW0308-P0 |
|
|
292 |
300 |
70 |
4 |
GW0309-P0 |
|
|
304 |
312 |
70 |
4 |
GW0310-P0 |
|
|
324 |
332 |
70 |
4 |
GW0311-P0 |
|
