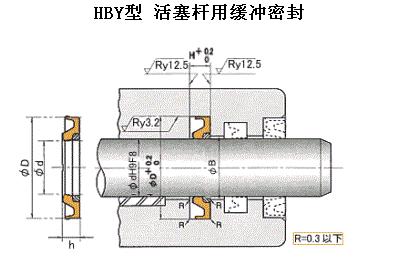

HBY缓冲环 |
||||
|
缓冲环的公称尺寸及腔体尺寸 |
NOK代码 |
|||
|
d |
D |
h |
H |
|
|
40 |
55.5 |
6 |
6.3 |
FQ0253-F3 |
|
45 |
60.5 |
6 |
FQ0254-F5 |
|
|
50 |
65.5 |
6 |
FQ0255-F4 |
|
|
55 |
70.5 |
6 |
FQ0256-F4 |
|
|
60 |
75.5 |
6 |
FQ0257-F4 |
|
|
65 |
80.5 |
6 |
FQ0258-F4 |
|
|
70 |
85.5 |
6 |
FQ0244-F5 |
|
|
75 |
90.5 |
6 |
FQ0245-F5 |
|
|
80 |
95.5 |
6 |
FQ0246-F6 |
|
|
85 |
100.5 |
6 |
FQ0259-F5 |
|
|
90 |
105.5 |
6 |
FQ0260-F6 |
|
|
95 |
110.5 |
6 |
FQ0575-F6 |
|
|
100 |
115.5 |
6 |
FQ0261-F7 |
|
|
105 |
120.5 |
6 |
FQ0629-F6 |
|
|
110 |
125.5 |
6 |
FQ0262-F6 |
|
|
115 |
130.5 |
6 |
FQ0868-F5 |
|
|
120 |
135.5 |
6 |
FQ0263-F4 |
|
|
125 |
140.5 |
6 |
FQ0842-F3 |
|
|
130 |
145.5 |
6 |
FQ0264-F5 |
|
|
132 |
147.5 |
6 |
FQ0784-F2 |
|
|
135 |
150.5 |
6 |
FQ0904-F2 |
|
|
140 |
155.5 |
6 |
FQ0265-F5 |
|
|
150 |
165.5 |
6 |
FQ0871-F3 |
|
|
160 |
175.5 |
6 |
FQ0433-F4 |
|
|
170 |
185.5 |
6 |
FQ0603-F0 |
|
|
180 |
195.5 |
6 |
FQ0451-F0 |
|
|
190 |
205.5 |
6 |
FQ0646-F0 |
|
|
200 |
221 |
7.7 |
8 |
FQ0830-F0 |
|
210 |
231 |
7.7 |
FQ0824-F0 |
|
